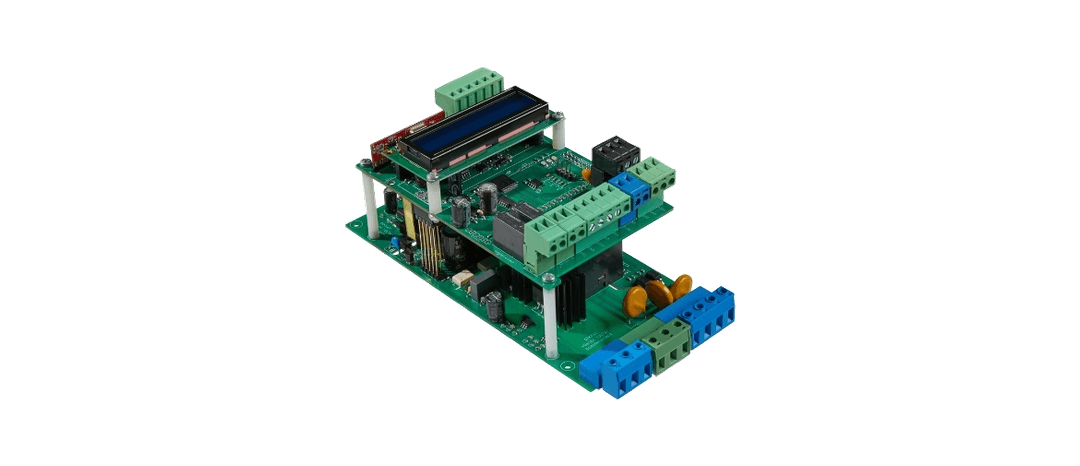

RR07
3-Phase (400V/5A) up to 1kVA Door Control Unit
3×380V, 1×Neutral ±15% input. Can automatically control PVC and sectional doors at a fixed speed.
Application Areas
Folding, Spiral and Sectional DoorsSliding Doors and Gates
Technical Specifications
Input Phase3 Faz
Input Voltage3×380V, 1×Nötr ±%15
Maximum Current5A
Maximum Power1 kVA
Auxiliary Power Output24V DC, 700mA
Features
It can automatically control PVC and sectional doors at a fixed speed.
It provides an area that provides the advantage of installation inside the motor box.
Door position is controlled by digital encoder or limit switches.
There is a text-based display.
Optional Integrations
Four channel Rolling code remote control can be integrated and photocell can be installed.
A tunnel system connection can be established.
