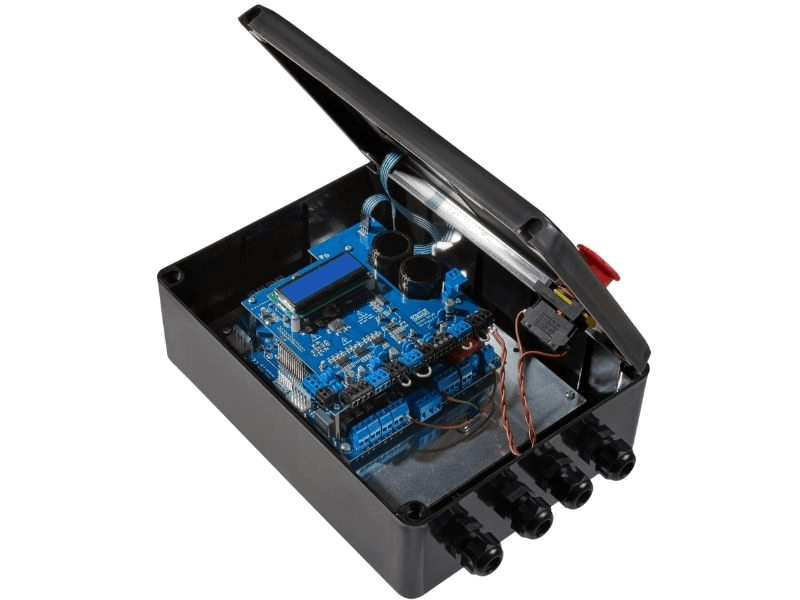

Frequency Converter

MR220

1-Phase (230V/8A) up to 1.2kW Door Control Unit

For door operators with a capacity of 1.4 kW (9A). Up to 60% duty cycle. 24 volt power supply (1000mA).

Application Areas

High Speed DoorsFolding, Spiral and Sectional Doors

Technical Specifications

Input Phase1 Faz

Input Voltage230V

Maximum Current8A (9A'ya kadar destekler)

Maximum Power1.2 kW (1.4kW'a kadar destekler)

Duty Cycle%60'a kadar

Auxiliary Power Output24V DC, 1000mA

Features

Soft start and braking ensure maximum material protection and long product life.

Quick start speeds up operations and reduces waiting times.

Easy installation thanks to comprehensive presets for standard door systems and self-learning automatic configuration.

Clearly visible service and information display is available.

There are slots for additional modules.

There is a text-based display.

Optional Integrations

Four channel Rolling code remote control can be integrated.

A metal detector system can be attached.

OSE security system can be added.

The attachment of Front/Back radars and Photocell is possible.

External button system can be installed.

A tunnel system connection can be established.
